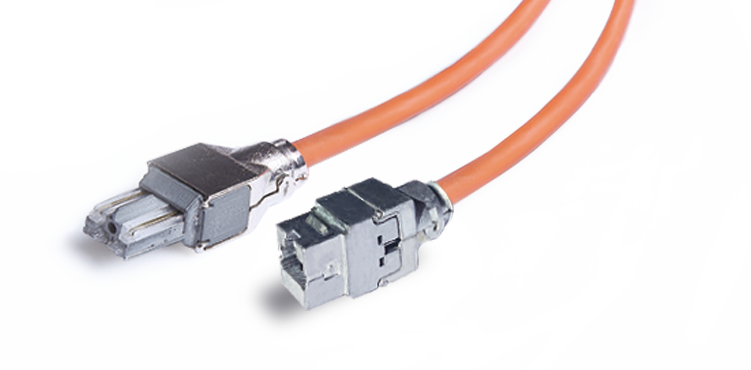

LAN CABLE CAT8
Structure
Conductor
 Solid copper、Strand Bare copper、Strand tinned copper
Insulation
 FPE
Outer jacket
 PVC、LSZH、PE、TPU、PUR
Flammability
 CMX、CM、CMR、CMP、IEC60332-1、IEC60332-3C、CPR(Eca、Dca、Cca、B2ca)
Combination

PERFORMANCE CAT8
FREQ IL RL NEXT ACRF TCL Prop.Delay PSANEXT PSAACRF
(MHz) (dB/100m) (dB) (dB) (dB) (dB) (ns/100m) (dB) (dB)
  Std. Std. Std. Std. Std. Std. Std. Std.
1 2.1 20.0 75.0 75.0 50.0 570 80.0 80.0
4 3.7 23.0 75.0 75.0 41.0 552 80.0 80.0
10 5.8 25.0 75.0 75.0 35.0 545 80.0 80.0
16 7.3 25.0 75.0 75.0 31.9 543 80.0 78.1
20 8.2 25.0 75.0 74.3 30.5 542 80.0 76.2
30 10.1 25.0 75.0 70.8 27.8 541 80.0 72.7
62 14.6 23.6 75.0 64.4 23.1 539 80.0 66.3
100 18.5 22.2 75.0 60.3 20.0 538 80.0 62.2
200 26.5 20.1 70.9 54.3 15.5 537 80.0 56.2
300 32.7 18.9 68.2 50.8 12.8 536 80.0 52.7
400 38.0 18.0 66.4 48.3 11.0 536 78.5 50.2
600 47.1 16.8 63.7 44.7 8.3 535 75.8 46.6
1000 61.9 15.2 60.4 40.3 7.0 535 72.5 42.2
1200 68.4 14.7 59.2 38.7 7.0 535 71.3 40.6
1500 77.2 14.0 57.8 36.8 7.0 535 69.9 38.7
1600 80.0 13.8 57.3 36.2 7.0 535 69.4 38.1
1800 85.4 13.4 56.6 35.2 7.0 535 68.7 37.1
2000 90.5 13.1 55.9 34.3 7.0 535 68.0 36.2
