LAN CABLE CAT7

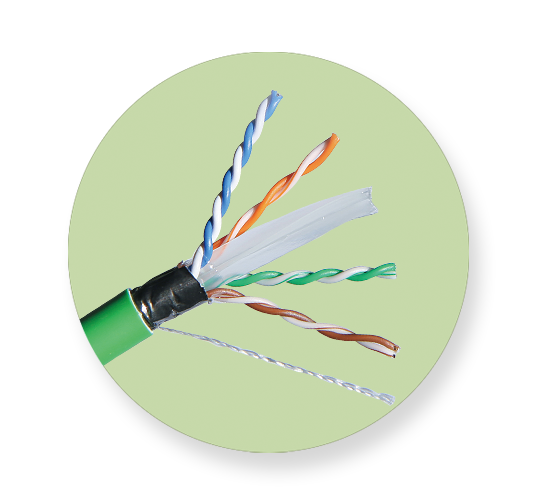

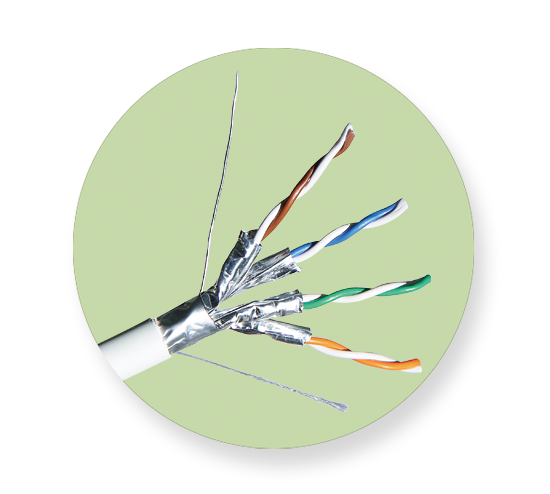

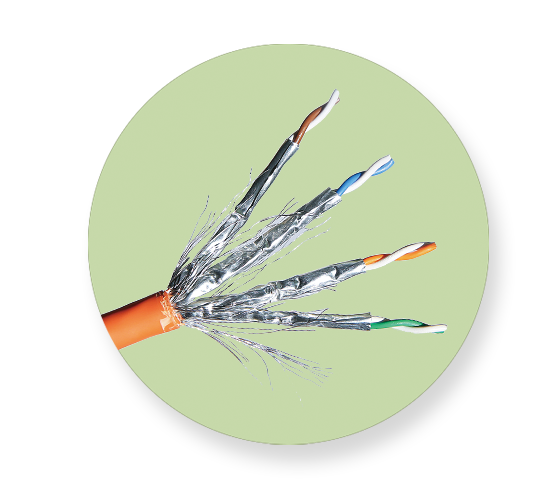

Structure
Conductor
 Solid copper、Strand Bare copper、Strand tinned copper
Insulation
 FPE、FEP
Outer jacket
 PVC、LSZH、PE、TPU、PUR
Flammability
 CMX、CM、CMR、CMP、IEC60332-1、IEC60332-3C、CPR(Eca、Dca、Cca、B2ca)
Combination

PERFORMANCE CAT7
Frequ-ency Attenu-ation NEXT PSNEXT Return Loss ELFEXT PSEL-FEXT
(MHz) (dB/100m) (dB/100m) (dB) (dB) (dB/100m) (dB/100m)
1 2.0 78.0 75.0 20 78.0 75.0
4 3.7 78.0 75.0 23 78.0 75.0
10 5.9 78.0 75.0 25 74.0 71.0
16 7.5 78.0 75.0 25 69.9 66.9
20 8.4 78.0 75.0 25 68.0 65.0
31.25 10.4 78.0 75.0 23.6 64.1 61.1
62.5 14.9 75.5 72.5 21.5 58.1 55.1
100 19.1 72.4 69.4 20.1 54.0 51.0
200 27.6 67.9 64.9 18 48.0 45.0
250 31.0 66.5 63.5 17.3 46.0 43.0
300 34.2 65.3 62.3 17.3 44.5 41.5
400 40.0 63.4 60.4 17.3 42.0 39.0
500 45.3 61.9 58.9 17.3 40.0 37.0
600 50.1 60.8 57.8 17.3 38.4 35.4
