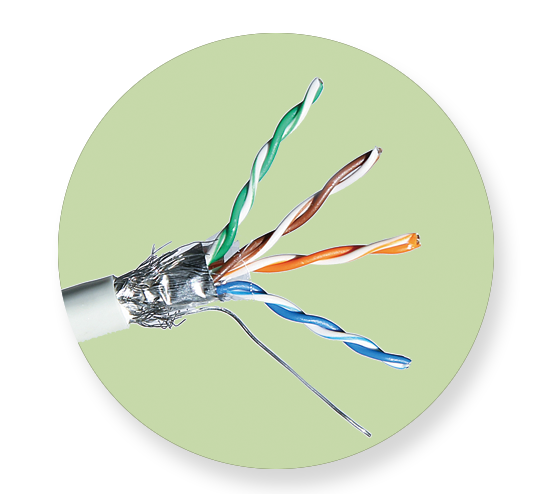

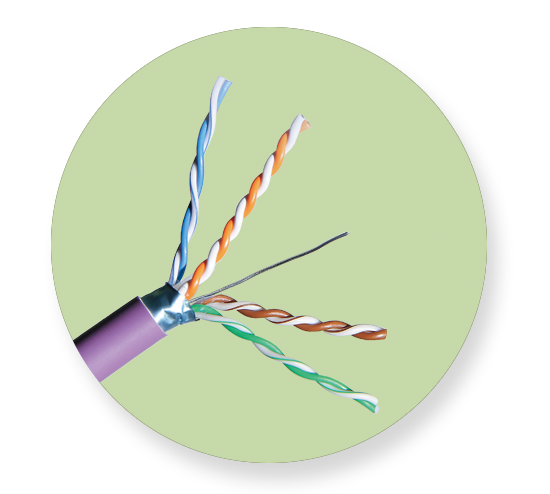

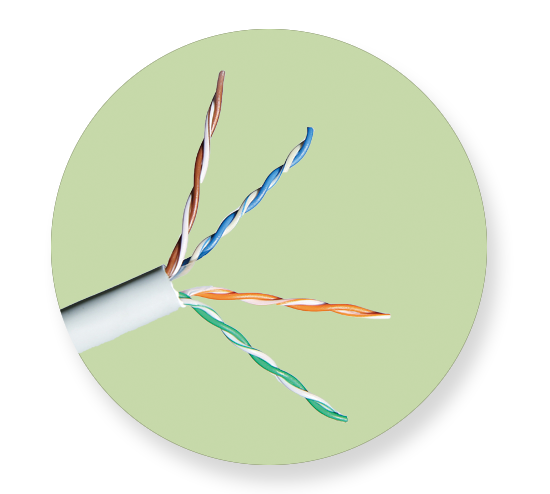

LAN CABLE CAT5E
Structure
Conductor Solid copper、Strand Bare copper、Strand tinned copper
Insulation PE、PP、FEP
Outer jacket
PVC、LSZH、PE、TPU、PUR
Flammability CMX、CM、CMR、CMP、IEC60332-1、IEC60332-3C、CPR(Eca、Dca、Cca、B2ca)
Combination

PERFORMANCE CAT5E
Frequ-ency Attenu-ation NEXT PSNEXT Return loss ELFEXT PSEL-FEXT
(MHz) (dB/100m) (dB/100m) (dB) (dB) (dB/100m) (dB/100m)
1 2.0 65.3 62.3 20+5log(f) 63.8 60.8
4 4.1 56.3 53.3 51.7 48.7
10 6.5 50.3 47.3 25 43.8 40.8
16 8.2 47.3 44.3 25 39.7 36.7
20 9.2 45.8 42.8 25 37.7 34.7
31.25 11.7 42.9 39.9 25-7log(f/20) 33.9 30.9
62.5 17.0 38.4 35.4 27.9 24.8
100 22.0 35.3 32.3 23.8 20.8
Impedance(1 00MHz)   100+/-15
